ES12 · Gel batteries

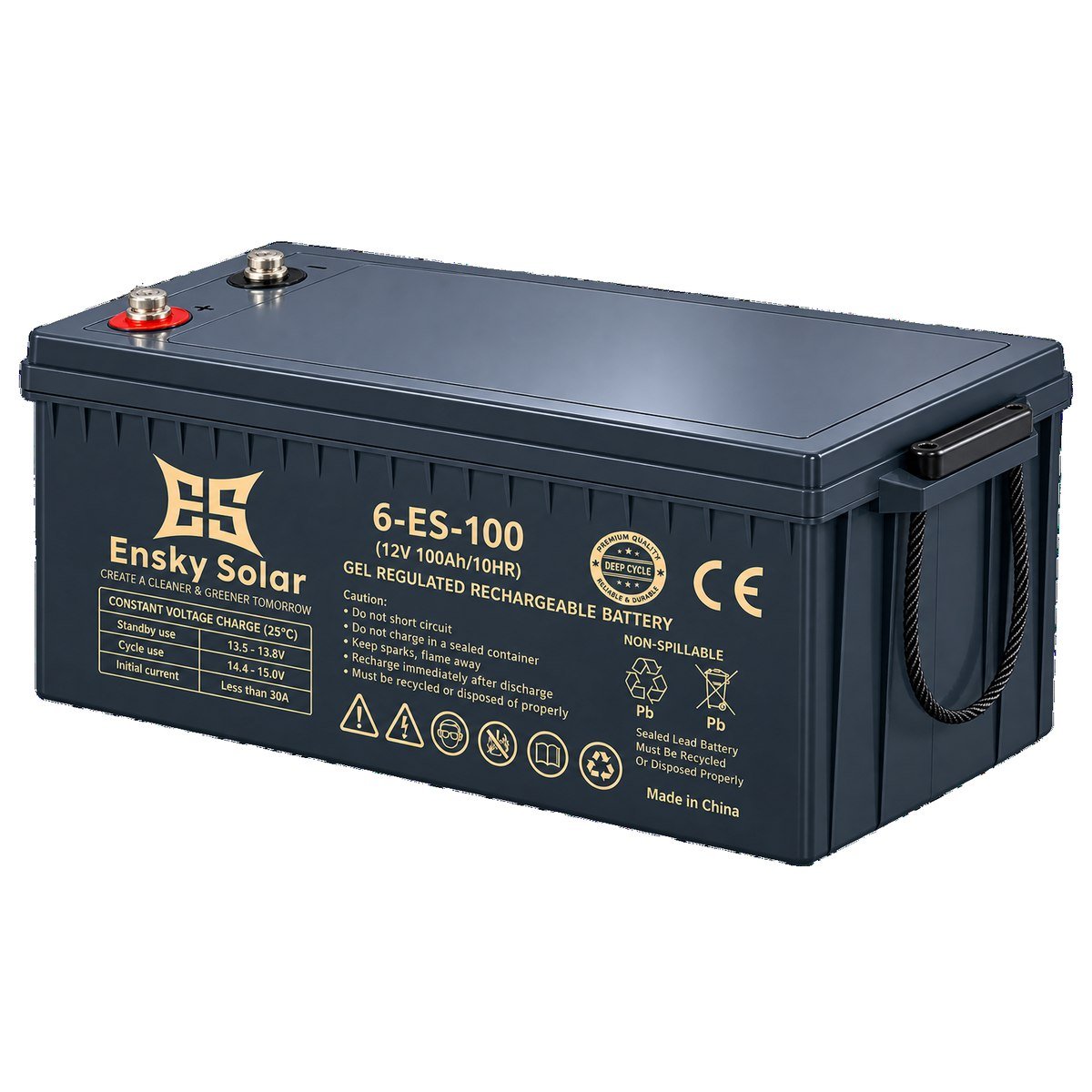

ES12-100AH
Sealed maintenance-free 12 V gel. The entry-level option for budget-constrained systems.
Shop
PDF datasheet CE
- Capacity
- 100Ah
- Marking on the product
- 6-ES-100
- Weight
- 29kg
Model specifications
| Capacity | 100 Ah |
|---|---|
| Dimensions | 405×174×207 mm |
| Weight | 29 kg |
| Maximum charging current | 25 A |
| Maximum discharge current | 800 A (5 s) |
| Internal resistance | ≈ 3.5 mΩ |
| Terminal type | F12 |
| Marking on the product | 6-ES-100 |
Shared range specifications
| Nominal voltage | 12 V |
|---|---|
| Technology | Sealed gel, maintenance-free |
| Float charge voltage | 13.50 to 13.80 V, -18 mV/°C compensation |
| Cyclic charge voltage | 14.10 to 14.40 V, -30 mV/°C compensation |
| Nominal temperature | 25 °C ± 3 °C |
| Capacity vs temperature | 102 % at 40 °C · 100 % at 25 °C · 85 % at 0 °C · 68 % at -15 °C |
ENSKY manufacturer specifications, subject to change without notice. Actual sizing depends on the site, the load profile and starting loads.
